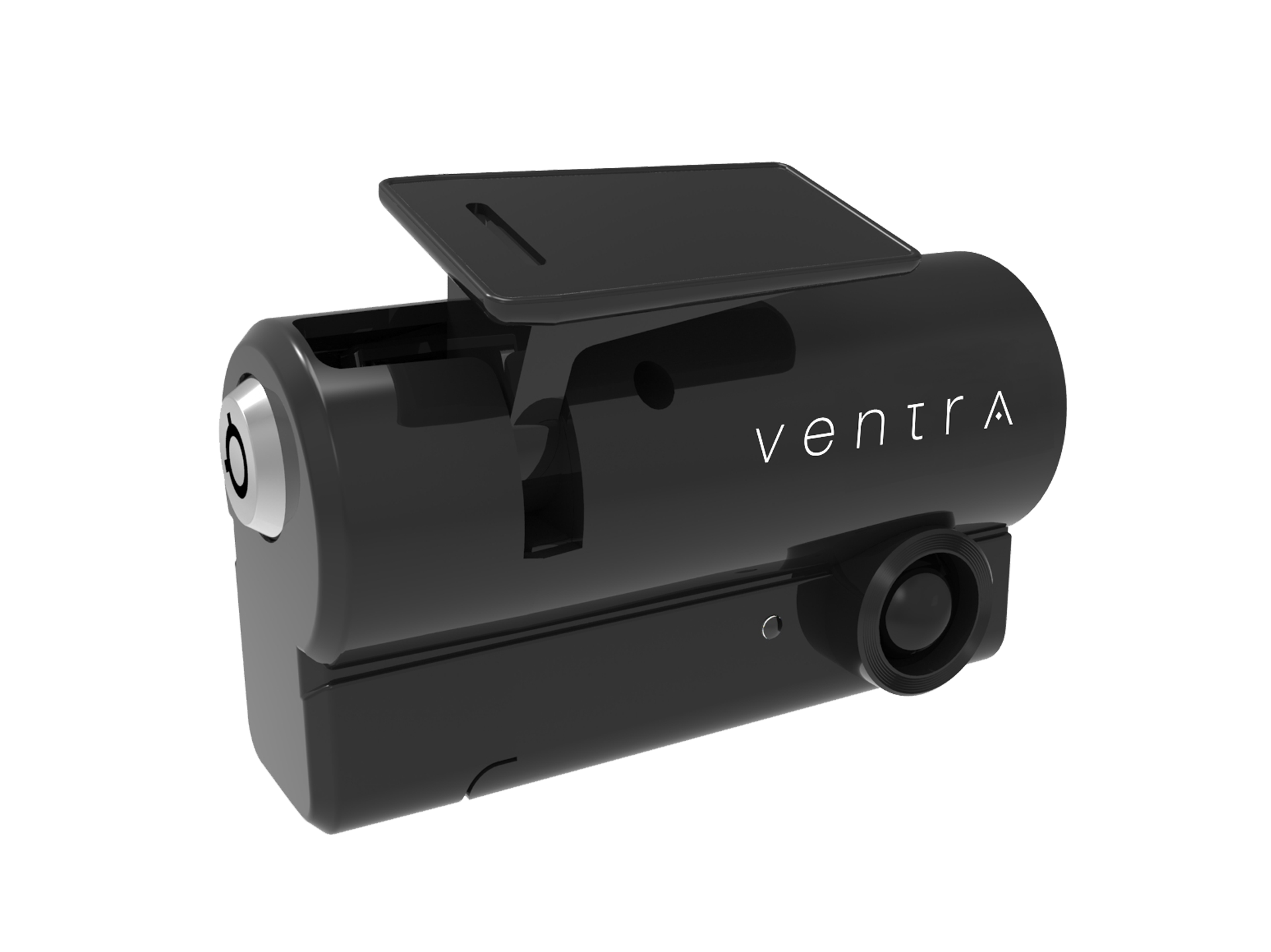

ALL-IN-ONE
VDR-600
The VDR-600 is a commercially proven, tamper-resistant fleet dash camera system designed for organizations that want the safety, security and incident-review benefits of a professional vehicle camera without recurring monthly fees
Installed across thousands of commercial vehicles, the VDR-600 combines a built-in 1080p front camera, support for an optional second camera, GPS, speed, audio and event recording in one rugged, lockable unit.
sUITABLE fOR
Tractors
Trucking
Buses
Cars
Features & Benfits
1080P HD (Front) + 720P HD 2nd Camera
Easy Setup, Plug and Record
Vandal Resistant Bracket
Audio, Date/Time, Coordinates and Speed
Auto Continuous Loop Recording
Built-in Sensor for Impact, Acceleration and Stops
User Friendly, License Free Management Software
Built-in GPS Passive receiver records Speed and Location History
NO monthly fees
Get the safety, security and incident-review benefits of a commercial fleet dash camera without recurring cloud subscriptions or per-vehicle service fees.
Why Fleets Choose the VDR-600
✓ No monthly subscription or per-vehicle service fee
✓ Commercially proven across thousands of vehicle installations
✓ Local SD-card footage ownership
✓ Tamper-resistant recorder and memory-card protection
✓ Integrated 1080p front camera with optional second-camera support
✓ Records video, audio, GPS, vehicle speed and impact events
✓ Optional in-cab LCD monitor connection for rear- or side-camera visibility
✓ Built for commercial trucks, buses, vans and fleet vehicles
Applications & Industries
Logistics, Delivery and Commercial Fleets
Local Government and Municipal Services
Law Enforcement and First Responders
And More... Contact a Ventra Representative Today!
Actual installation of VDR-600

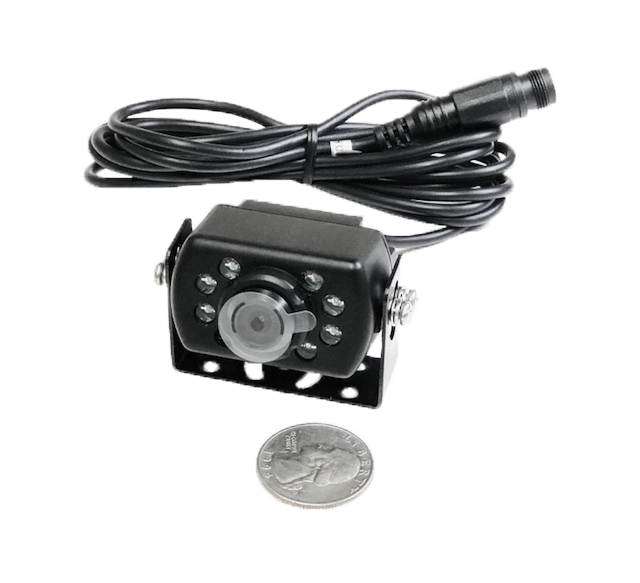

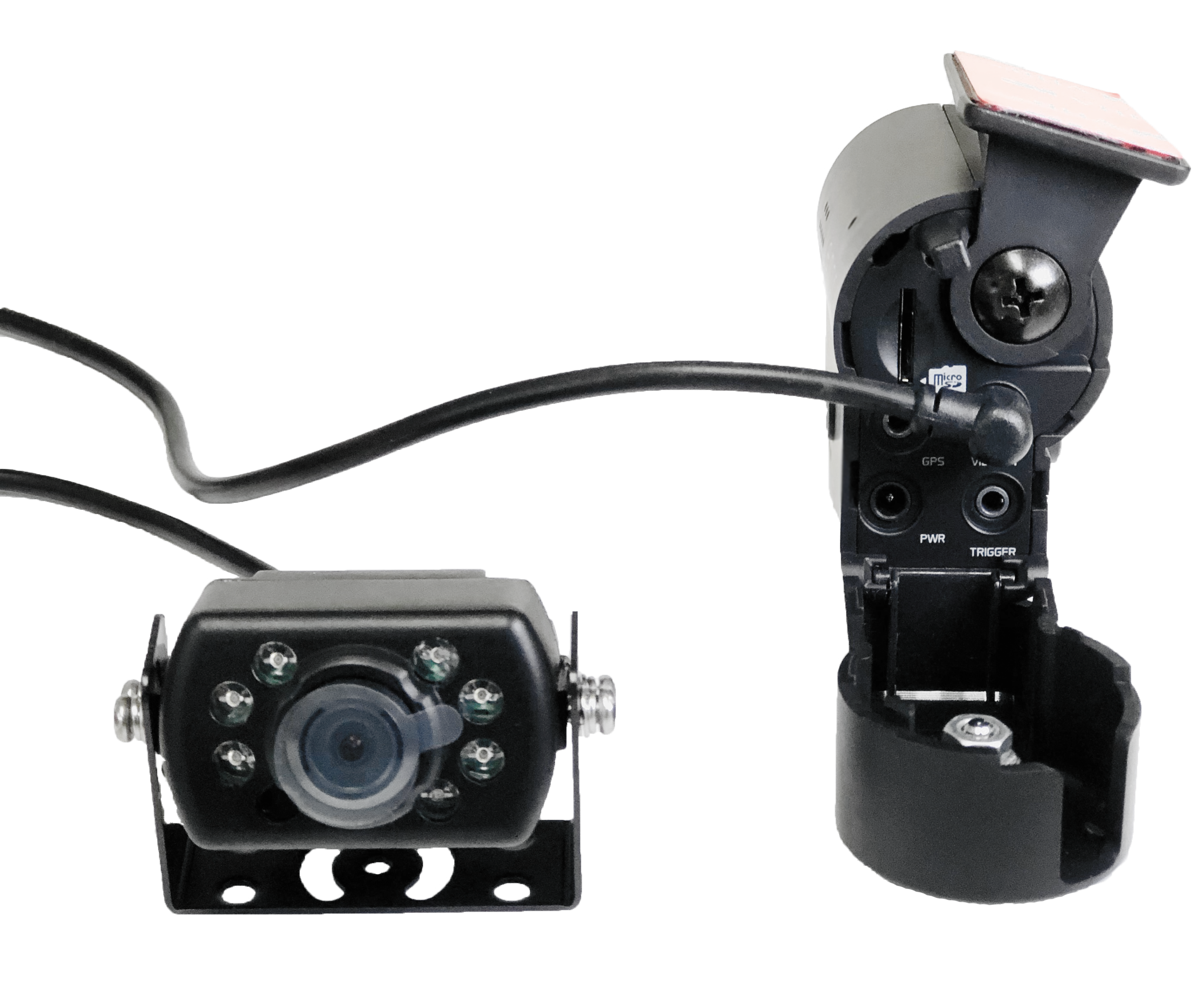

The optional EX6-OMIR 2nd camera with IR is outdoor rated and can be utilized to record either the driver, side or rear of the vehicle. Providing flexibility and enhanced security
VDR-600 Frequently Asked Questions
The VDR-600 includes a built-in 1080p front camera and supports one optional EX6-OMIR 720p external camera for driver, side, rear, or cargo-area coverage.
No. The VDR-600 records locally to a microSD card and does not require a recurring cloud or software subscription.

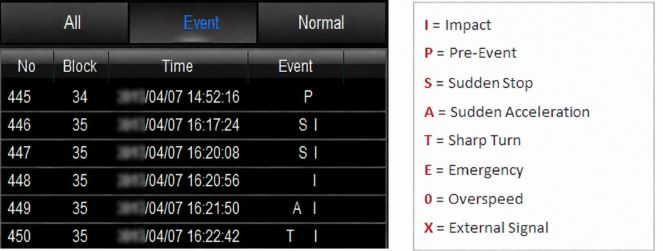

The system continuous record video, audio (can be disabled in setting), date and time, GPS location, vehicle speed, shock, impact, sudden acceleration and harsh braking.

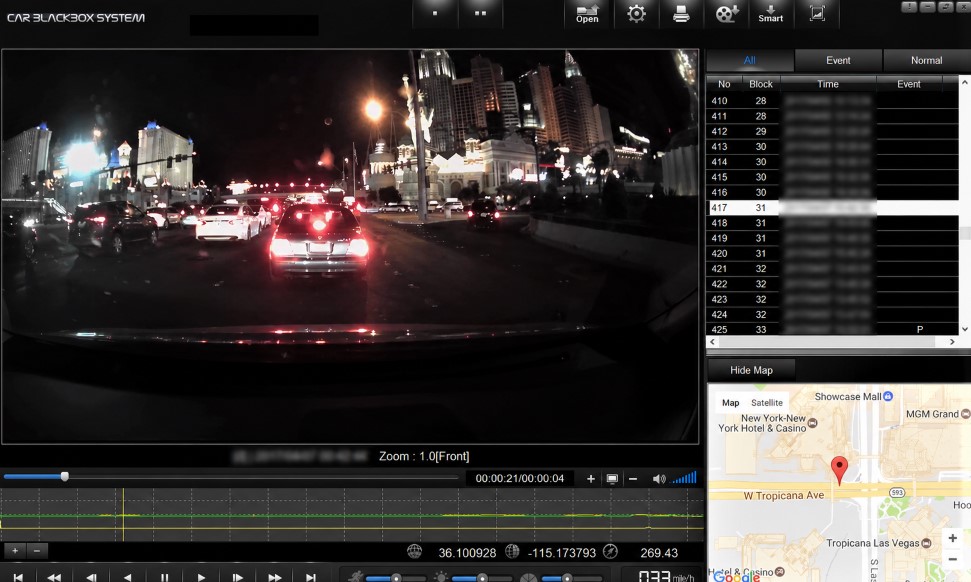

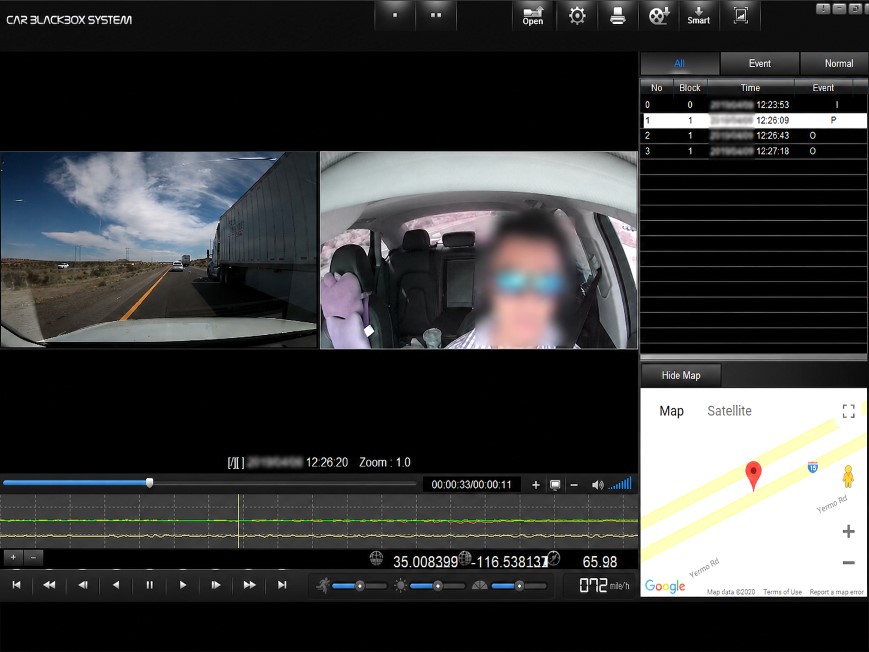

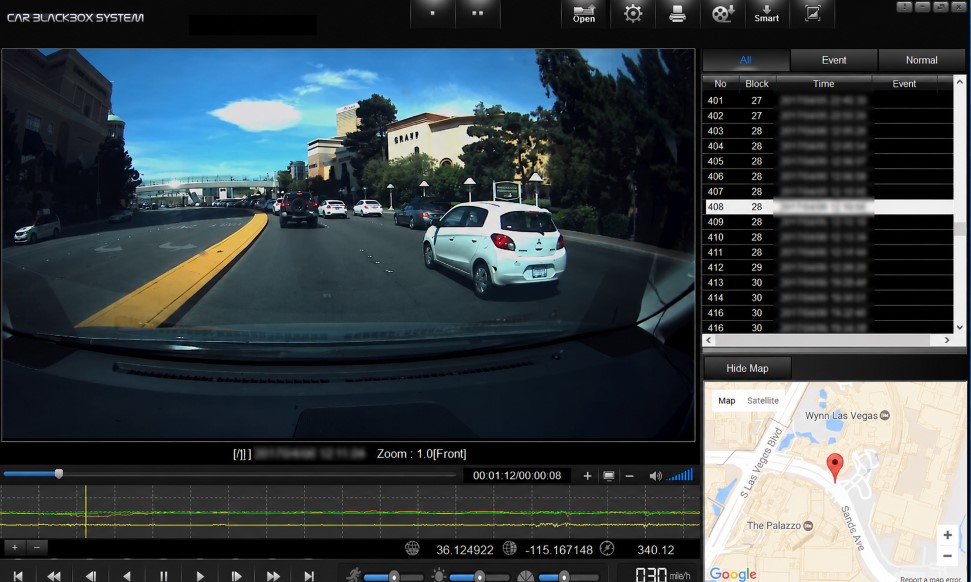

Footage can be reviewed by removing the microSD card and using the included VDR-600 PC playback software.
The EX6-OMIR optional external camera includes 15ft cable and can be positioned for driver, passenger, side, rear, or cargo-area coverage, depending on the installation.
Yes. With the optional EX6-VOC video-output connection cable, a Ventra VLCD in-cab LCD monitor can display the second camera for rear or side visibility while the system continues recording.
The recorder and features are the same across all VDR-600 models. The only difference is the included microSD card capacity:
- VDR-600: 16GB
- VDR-600BT: 32GB
- VDR-600XT: 64GB
- VDR-600ZT: 128GB
- Main Camera
- Mounting Bracket
- 16GB SD
- Power Cable
- 2 Keys
- Software
- Main Camera
- Mounting Bracket
- 32GB SD
- Power Cable
- 2 Keys
- Software
- Main Camera
- Mounting Bracket
- 64GB SD
- Power Cable
- 2 Keys
- Software
- Main Camera
- Mounting Bracket
- 128GB SD
- Power Cable
- 2 Keys
- Software
- 720P HD Camera
- Mounting Bracket
- 15ft Camera Cable
| Resolution | 1080P 30FPS |
| Camera | 1/2.9″ CMOS |
| # of Cameras Supported | 2 Max |
| Recording Angle | 140 Degrees |
| Storage | 32 – 128 GB MicroSD max , Class / SPeed U1 or faster |
| LED Indicator | REC, GPS, Power, Microphone |
| Microphone | Built-in |
| G-SENSOR | Built-in |
| Accelerometer | Built-in |
| Passive GPS | Built-in |
| Built-In Super Capacitor | YES |
| Power Consumption | DC 12V (210 ~ 250mA) |
| Temperature ( Operating / Storage) | 14F ~ 150F / -22° ~ 165° |
| Environment | Indoor |
| Power | 5VDC±10% input |
| Resolution | 1280 x 720 HD 10 FPS |
| Image Sensor | 1/4” CMOS sensor |
| View Angle | 120 ° |
| Housing | Metal |
| Temperature | Operation:- 14F ~ 150F Storage: – 22F ~ 165F |
| Connection | 15ft cable with Earphone Pin jack to VDR-600 main camera (included) |
| Environment Outdoor Rating | IP67 (Indoor / Outdoor) |
| Dimension (L x W X H) | 2.5” x 1.5” x 3.5” inch |
VDR-600 Expansion Products

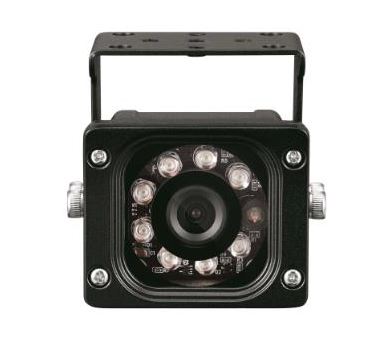

EXPANSION CAMERA
EX6-OMIR
720P HD Indoor / Outdoor IR LED expansion camera for VDR-600 system
HARDWIRED POWER CABLE
EX6-BPC
Replacement 12VDC hardwired power cable for VDR-600 main camera
WINDSHIELD BRACKET
EX6-BKT
Replacement windshield mounting bracket for VDR-600 main camera
VIDEO OUT CABLE
EX6-VOC
Video out cable provides RCA output connection to external LCD monitor
No Costly Monthly Fees
Designed for organizations that want the safety, security and incident-review benefits of a professional vehicle camera without recurring monthly fees
