sUITABLE fOR
Tractors
Trucking
Buses
Cars
VMDR-840 series is a 4 CH ruggedized vehicle Mobile DVR system – providing comprehensive interior and exterior visibility. Equipped with a built-in LTE cellular connection, the VMDR delivers critical video, location, and sensor information to VentraCloud, an optional cloud-based video telematics service for real-time video, GPS tracking and event video storage platform.
Designed for maximum flexibility, VMDR is equipped with dual SD card slot with a total of 1TB storage capacity. System continuously loops records to capture vital information without concern of storage limitation.
Ventra video systems are extremely versatile and deployed in a wide range of vehicle, trailers, and specialized equipment such as forklifts, construction, and off highway vehicles.
KNOW – WHO, WHAT, WHERE & HOW
Benefits of Ventra Video
- Complete coverage and visibility
- Enhance Safety, Security and Management
- Know where and how
- Mitigate risk for driver & organization
- Unsafe driver coaching
- Incident documentation
- Improve productivity and efficiency
- Increase revenue opportunities
Real-Time Visibility
VentraCloud subscription service provides real-time visibility to significantly enhance insight regardless of type of vehicle or industry. Use cases such as logistics and delivery companies to monitor personnel / cargo access, package delivery confirmation, theft, pilferage, and space utilization. Transit providers record ridership and incident documentation. Regardless of industry or application, Ventra VMDR is the optimal video solution
Applications & Industries
Logistics, Delivery and Commercial Fleets
Mass Transit, Shuttle and School Bus
Law Enforcement and First Responders
And More... Contact a Ventra Representative Today!
- Built-in cellular for VentraCloud Video Remote Access*
- Dual SD card slot – up to 1TB total storage
- 1080P / 720P HD video quality
- Records HD Video, Audio, Speed / Route
- Built-in G-sensor Auto-Detect Impact Trigger
- Passive GPS records speed and vehicle location
- Event Recording – Overspeed, Impact, Alarm Trigger

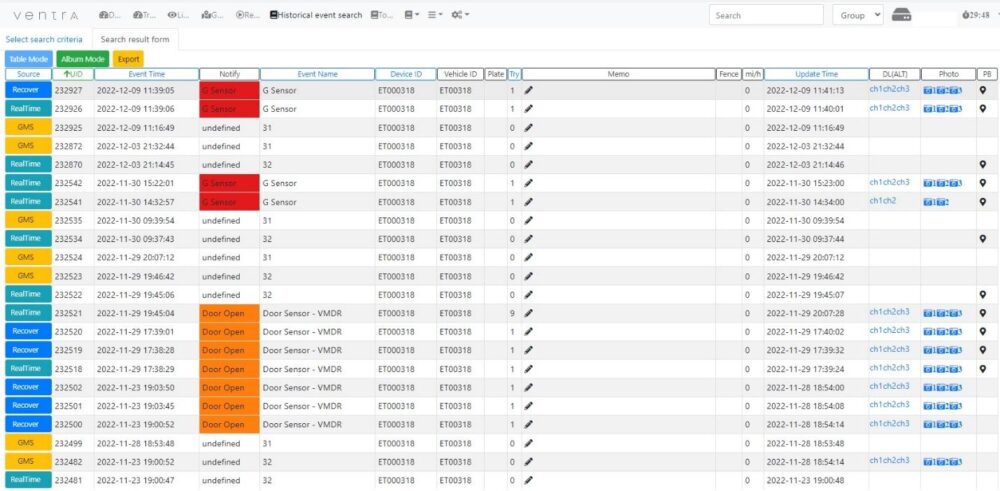

- Event video clip (30 seconds) upload / archive in VentraCloud*
- Rugged & Reliable / Solid State Design
- Compact Size / Small Foot Print
- Video Output to optional LCD monitor
- Alarm Trigger Cable – Connect to 3rd party Ext. Sensors (Door, Lock, Light)
* Requires optional VentraCloud monthly subscription service
- 1 x 4CH MDVR
- SD Card(s) – Qty depend on model
- 1 x Embedded LTE
- 1 x Passive GPS Receiver
- 1 x Video Out RCA Connection
- 1 x Alarm Trigger Cable
- 1 x Power Cable
- 1 x PC Desktop Viewing Software
- 1 x Remote Control
| Model | SD Card Included |
|---|---|
| VMDR-844-128 | 128GB x 1 |
| VMDR-844-256 | 256GB x 1 |
| VMDR-844-512 | 512GB x 1 |
| VMDR-844-1TB | 512GB x 2 |
| Channels | 4CH 1080P/ 720P AHD |
| Record Frame Rate / Second (FPS) | 1080P @ 4CH @ 30FPS /CH, 720P @ 4 CH @ 30FPS / CH |
| Record Resolution | 1920 x 1080 (1080P) / 1280 x 720 (720P) / 960H |
| Video Format | NTSC / PAL |
| OS | Embedded Linux |
| Storage SD Card | SD Card x 2 (Max support 512 GB per SD Card) Speed: Class U1 or faster |
| G-Sensor Function | Yes (Included) |
| Camera Power Output | 12V / 750mA |
| Video Output | VGA OR CVBS output X 1 |
| Audio Input | Audio Input X 1 / Optional Ext. Mic Sold Separately |
| Audio Output | Audio Output X 1 |
| Alarm I/O | Alarm Input x 4(N.C) Alarm Output x1 (N.C) |
| Input (I/O) | N/A |
| Operation Interface | GUI OSD |
| Language | English |
| Display Mode | 1CH / 4CH / 9CH |
| Simplex Mode | Record / Playback |
| Playback Mode | Time / Date, Event |
| Playback Full Screen | Support |
| LED Indicator | 4 LED (LAN, REC, GPS, POWER) |
| Event Triggers | Over Speed, Impact, Alarm Trigger (If Utilized) |
| Battery | N/A |
| Delay Shut Off Timer | Built-in (Programmable) |
| Power | 8V – 60V DC (Input), 12V DC Output |
| Power Consumption | Working: 8 – 36VDC, 6W (12V, 0.9A) excluding cameras and monitor, standby: >10mA / 12.6V |
| Dimension | 7″ x 4.5″ x 1.25″ W x D x H |
| Temperature (Operation) | -4F -149F(-20C – 65C) |
| Signal Loss Detection | Yes |
| IR Control | Yes (Included) |
Video Playback Option
Recorded videos can be viewed directly from the VMDR if an external LCD monitor is connected to the system. SD card recordings can also be viewed on a PC via the VMDR desktop software. Footage can also be conveniently accessed and downloaded remotely via VentraCloud service.
Affordable monthly plans and 6 month service contract
