VPD-736 SERIES
BLIND SPOT VISION SYSTEM
3 IN 1 SOLUTION
Ventra VPD-736 blind spot radar sensor camera system is the ultimate 3 in 1 turnkey video solution, providing unparalleled visibility for fleet vehicles.
Commercial vehicles, such as trucks, buses, or large delivery vans, often have a difficult time seeing what is happening on either side of their vehicle. This can lead to accidents that could be avoided if the driver had a better view of their surroundings. Side cameras and backup cameras help drivers see objects on either side of the vehicle to mitigate risks and incidents.

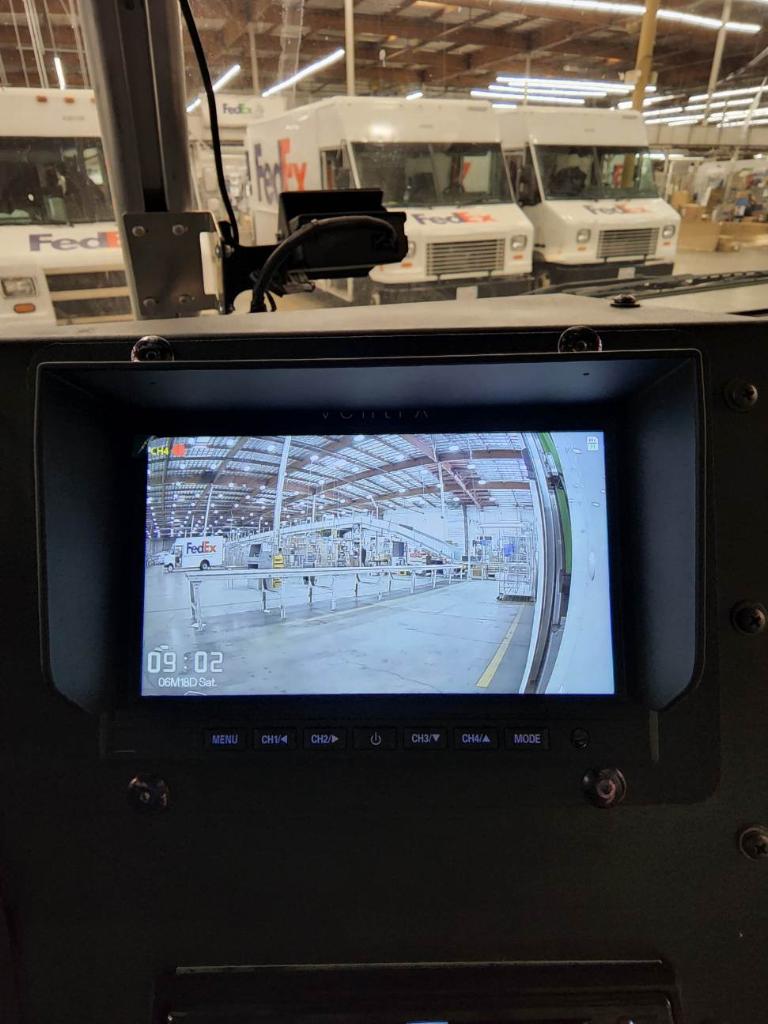

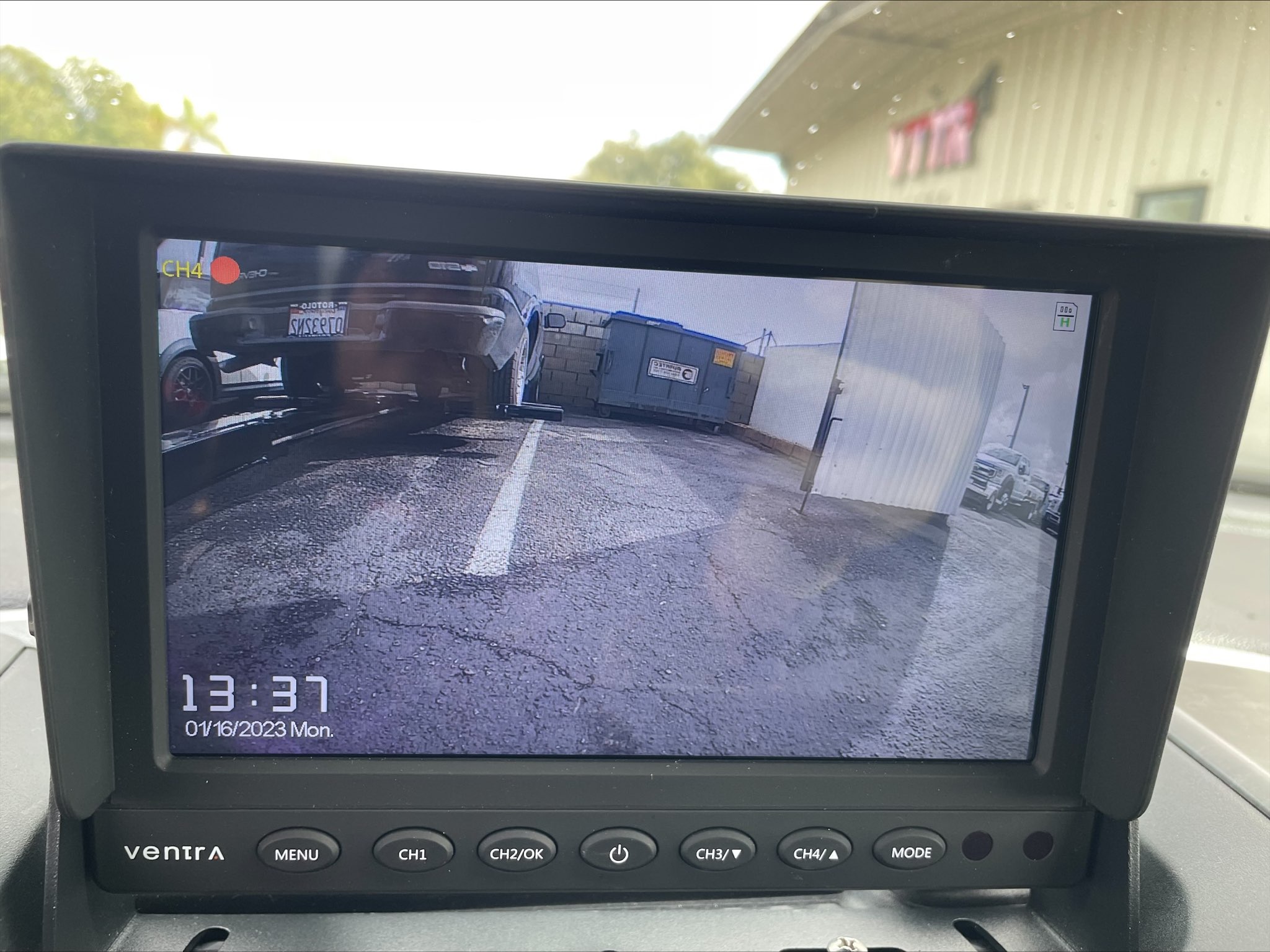

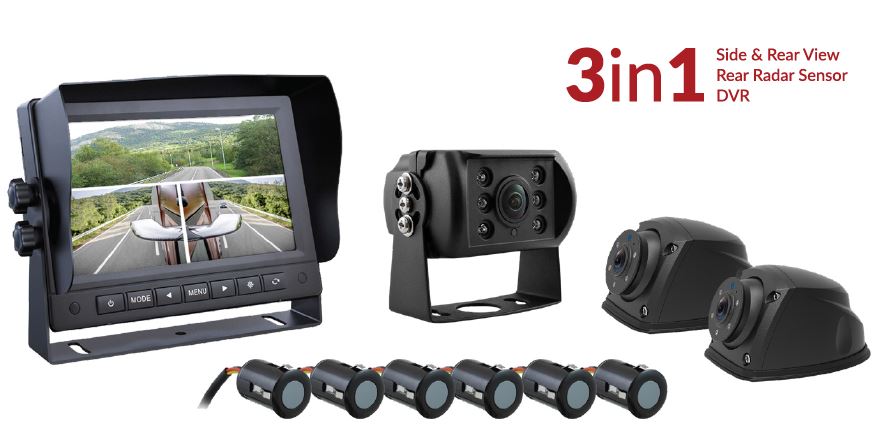

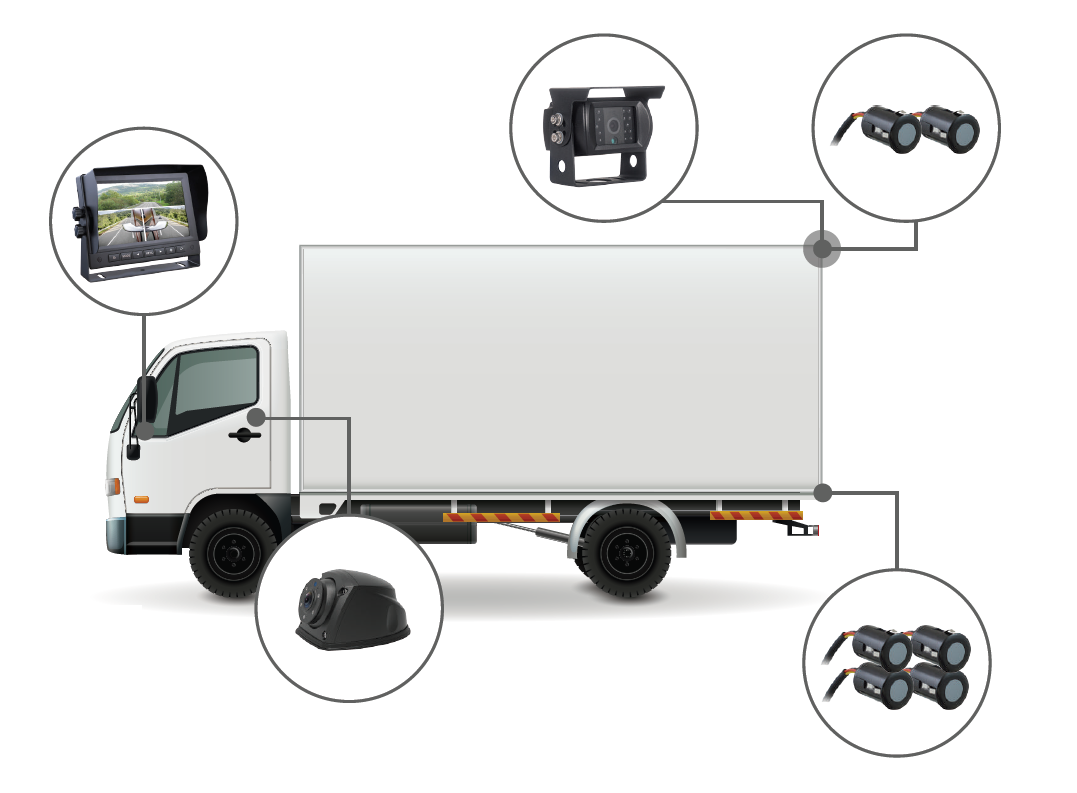

VPD-736 includes – 3 HD 1080P cameras, 6 rear sensors, 7″ Hi-Resolution LCD Screen / DVR to enhance visibility and safety from any angle.
SUITABLE FOR
VAN
TRUCKING
CONSTRUCTION
TRUCKING
- 2 Rugged 1080P HD weatherproof IR side camera with superior day and night image quality
- 1 Rugged 1080P weatherproof IR wide viewing angle backup camera

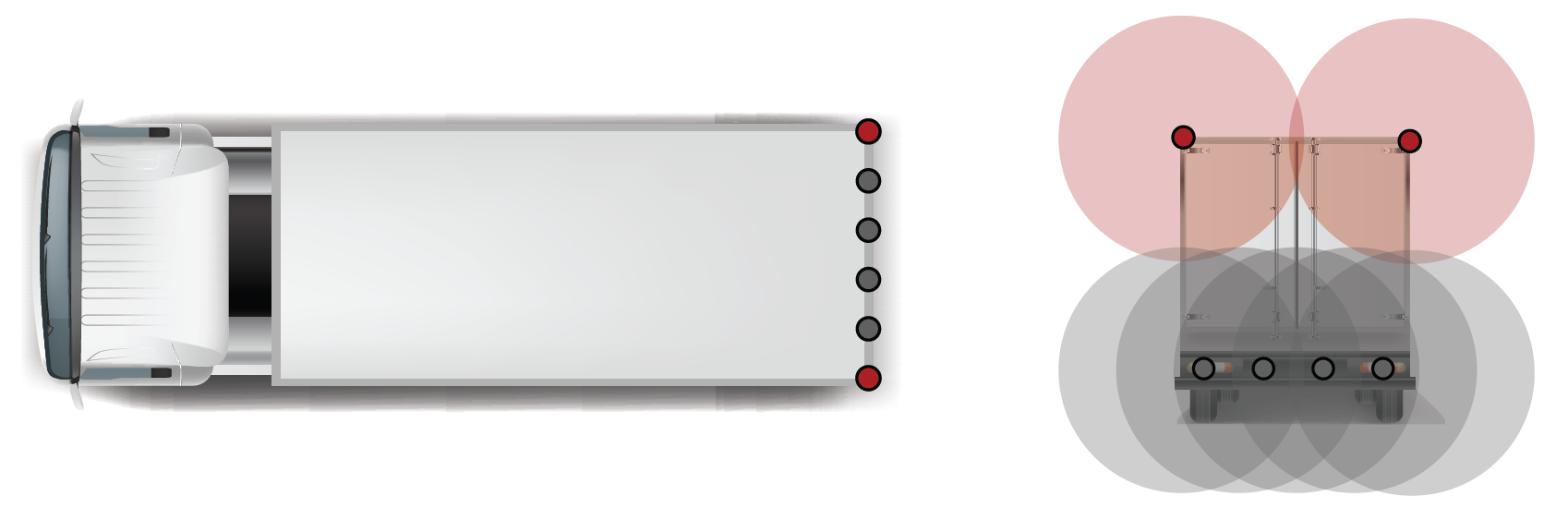

- 6 waterproof Ultrasound proximity sensors detect object up to 8 ft away
- 7” TFT HD Resolution LCD monitor with up to 4 camera input
- Video recording feature for incident documentation
- Configurable camera split screen display mode
- Trigger cables automatically switch camera display view
- Audible proximity beeps to alert drivers of object
- Individual colored sensor circle display in LCD monitor provide visual alerts
- Easy to install and operate – No separate ECU modules
- Save time on labor
- 1 x 7” LCD Monitor with DVR function (VLCD-74PR)
- 1 x 128GB Micro SD Card
- 1 x 1080P HD Rear view IR camera EX88-XC5D
- 2 x 1080P HD Side view IR camera (EX88-XC3D)
- 6 x Radar proximity sensors (VPD-PS1)
- 1 x 4 sensor harness cable
- 1 x 2 sensor harness cable
- 2 x Sensor extension 45ft cable (VPD-CBL45)
- 1 x 45 ft camera cable (EX4-CBL45)
- 2 x 15 ft camera cable (EX4-CBL15)
- 6 X Sensor flush mount grommet (VPD-SFRG)
- 2 X 8 degree offset flush mount grommet (VPD-SF8G)

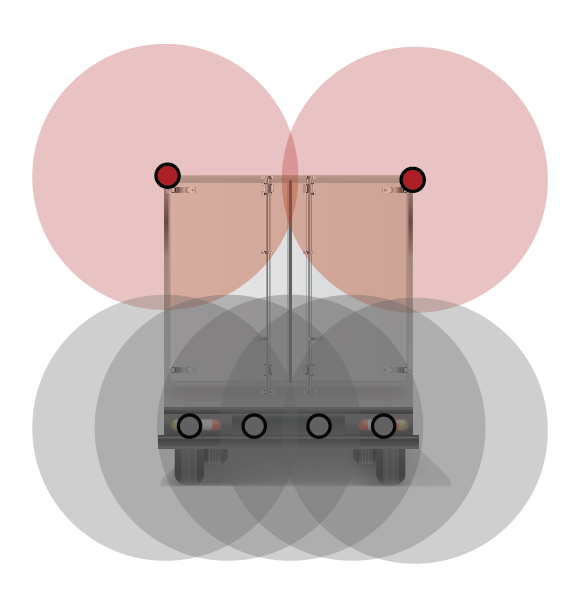

LCD Monitor | |
Screen Size | 7” TFT LCD |
Aspect | 16:9 Ratio |
Video Input | Max 4 Cameras |
Camera Resolution / Input | Supports 1080P AHD, 720P AHD, CVBS (4 Pin DIN Connection) |
DVR Recording | Yes – Continuous recording |
SD Storage Capacity | 256 GB Micro SD max Class U1 / U3 and faster |
Video Playback | Video recording playback directly in LCD monitor |
LCD Resolution | 1024 x 600 |
Brightness | 300cd/m2 |
Viewing angle | L / R = 70 degrees, UP = 70 degrees, Down = 70 degrees |
Viewing Mode | 1 (Full Screen), 2 (Split Screen), 3 (T-Shaped) 4 (H-Shaped Screen) |
Video Format | NTSC / PAL |
Video Frequency | 50 / 60HZ |
Menu | OSD control – Brightness, Contrast, Sharpness, Orientation, Video Format, Language, DVR, Sensors |
Trigger | 3 separate trigger wires |
Proximity Sensor | 6 proximity sensors (2 Top / 4 Bottom) |
Remote Control | Included |
Operating Power | 12 ~ 32VDC |
Temperature (Operating) | -40°F ~ +145°F |
Temperature (Storage) | -40°F ~ +160°F |
EX88-XC3D 1080P Side Camera with IR | |
Image Sensor | 1/2.9″ CMOS 2MP |
Resolution | 1080P AHD 1920 x 1080 |
IR | 5 LED |
Viewing angle D x H x V | D = 140°, H = 120°, V = 60° |
Camera Angle Rotate | Camera angle orientation can be rotated 360 degrees |
IP Rating | IP 68 |
Video Format | NTSC |
Housing | Metal |
Input Connection | 4 Pin DIN |
Frequency | 60HZ |
Operating Power | 12VDC |
EX88-XC5D 1080P Rear / Front Camera with IR | |
Image Sensor | 1/29″ CMOS 2MP |
Resolution | 1080P AHD 1920 x 1080 |
IR | 6 LED |
Viewing angle D x H x V | D = 160°, H = 145°, V = 85° |
IP Rating | IP 68 |
Video Format | NTSC |
Housing | Metal |
Input Connection | 4 Pin DIN |
Frequency | 60HZ |
Operating Power | 12VDC |
VPD Backup Sensors | |
Sensor Type | Digital Sensor |
Sensor Frequency | 58 ± 1 kHz @ 77°F ± 5.4°F |
Sensor Capacitance | 2000 ± 15%pF |
Echo Sensitivity | 480uS ~ 680uS @ 77F° ± 5.4°F and 47” range |
Detection Tolerance | ±3.9 inch |
Horizontal Angle | 90 ± 10° |
Vertical Angle | 45 ± 5° |
Ring time | <2.0ms |
Rated current | <20mA each sensor |
Working Voltage | 9 ~ 28VDC |
IP Rating | IP 67 |
Housing | ABS |
Rated current | <20mA each sensor |
Input Connection | 4 Pin DIN |
Temperature (Operating) | -40°F ~ + 185°F |
Temperature (Storage) | -40°F ~ + 185°F |
