sUITABLE fOR
Tractors
Trucking
Buses
Cars
Benefits
The VLCD-K7 series delivers the optimal vision enhancement system to address blind spot issues with an integrated 7” LCD monitor display with built-in video recording / playback function that supports up to 4 HD cameras.
These 4 – 1080P HD cameras can be placed anywhere inside or outside of the vehicle, truck, or asset such as semi-trailers and construction equipment.
- Eliminate blind spots
- Continuous video recording
- Instant video playback
- Enhance Visibility, Safety, and Security
- Mitigate risk for driver & organization
- Driver coaching
- Incident documentation
vlcd-k723
System includes
(1) 7″ Hi Res TFT LCD Monitor
(1) 128GB Micro SD Card
(1) EX88-XC5D Wide Angle Rear Camera w/ IR
(2) EX88-XC3D Wide Angle Side Camera w/ IR
(2) EX88-XC3D Wide Angle Side Camera w/ IR
(2) 15ft camera cable
(1) 30ft camera cable
Video Recording + Playback = Enhanced Security & Risk Mitigation
Intelligent LCD monitor with built-in recording function significantly enhances security with auto recording of all 4 cameras simultaneously, even while vehicle is parked, regardless which camera is displayed.
Applications & Industries
Logistics, Delivery and Commercial Fleets
Local Government and Municipal Services
Law Enforcement and First Responders
And More... Contact a Ventra Representative Today!
- 7” Hi Visibility LCD monitor with up to 4 HD camera input
- Video recording of all cameras for incident documentation
- 128GB MicroSD card storage

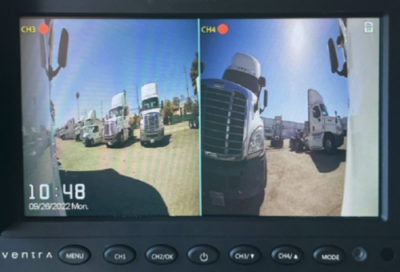

- Video display modes – 1 CH, Split Screen, 3 CH, Quad
- Trigger cables automatically switch camera display view
- Supports 6 rear proximity sensors detect objects up to 8 ft away (sold separately)
- Easy to install and operate – No separate ECU modules
- Save time and labor
Model | VLCD-K715 | VLCD-K723 | VLCD-K725 | VLCD-K7335 | VLCD-K7435 | |
VLCD-74PR LCD Monitor | 1 | 1 | 1 | 1 | 1 | |
128GB Micro SD | 1 | 1 | 1 | 1 | 1 | |
EX88-XC3D Side Cam | 0 | 2 | 0 | 2 | 2 | |
EX88-XC5D Front / Rear Cam | 1 | 0 | 2 | 1 | 2 | |
EX4-CBL15 15ft cable | 0 | 2 | 2 | 2 | 2 | |
EX4-CBL30 30ft cable | 1 | 0 | 0 | 1 | 2 |
| Screen Size | 7″ TFT LCD |
| Aspect | 16:9 Ratio |
| Video Input | Max 4 Cameras |
| Camera Resolution / Input | Support 1080P AHD, 720P AHD, CVBS (4 Pin DIN Connection) |
| DVR Recording | Yes – Continuous Recording |
| SD Storage Capacity | 256 GB Micro SD max Class U1 / U3 and faster |
| Video Playback | Video recording playback directly in LCD monitor |
| LCD Resolution | 1024 x 600 |
| Brightness | 300cd/m2 |
| Viewing Angle | L/R = 70 degrees, UP = 70 degrees, Down 70 degrees |
| Viewing Mode | 1(Full Screen), 2(Split Screen), 3(T-shaped), 4 (H-Shaped Screen) |
| Video Format | 50/60Hz |
| Frequency | Built-in 2” LCD |
| Menu | OSD Control, Brightness, COntrast, Sharpness, Orientation, Video Format, Language, DVR, Sensors |
No Costly Monthly Fees or Contracts
Our products can be implemented as a standalone system, or as add-on enhancements to existing GPS / Telematics solutions.
