BACK UP CAMERA
VLCD - WK4 WIRELESS CAMERA & MONITOR SYSTEM

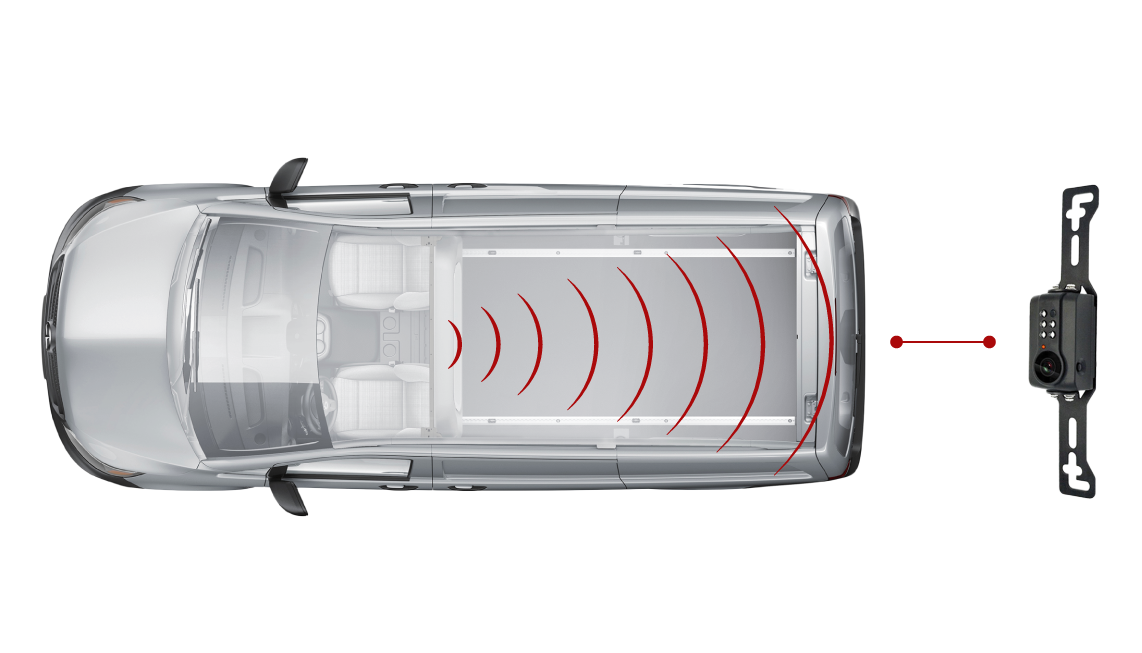

The VLCD-WK4 is a 2.4GHz wireless digital camera monitor system ideal for any type of vehicle. It is extremely easy to install, without the hassle of running cables and wires under or inside the vehicle. Simply plug the monitor into an aux power and the wireless camera connects to the reverse light for power. The digital spectrum minimizes interference, providing a clear and vivid video with distance guide line.
sUITABLE fOR

Tractors

Trucking

Buses

Cars
Wireless Viewing Anywhere

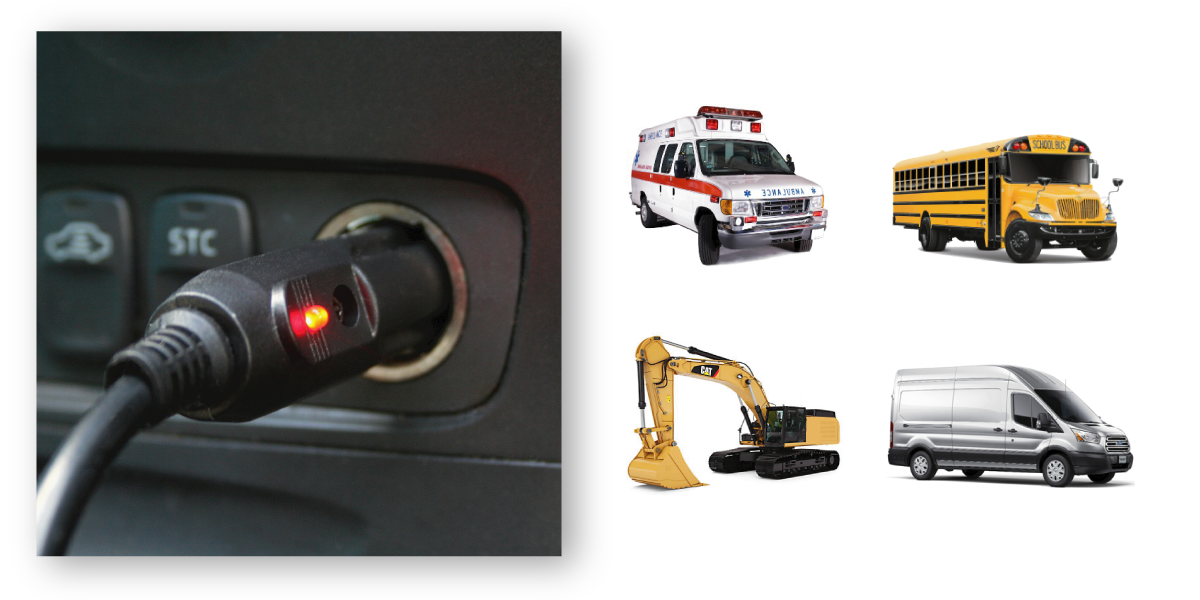

- Easy to Install, Plug and Play
- For Rear View, Blind Spot, Side or Interior
- Camera over license plate / other locations
- Ideal For Any Vehicles
- Enhance Safety and Security
- Increase Situational Awareness
- Mitigate risk



Previous image
Next image
Features & Benfits

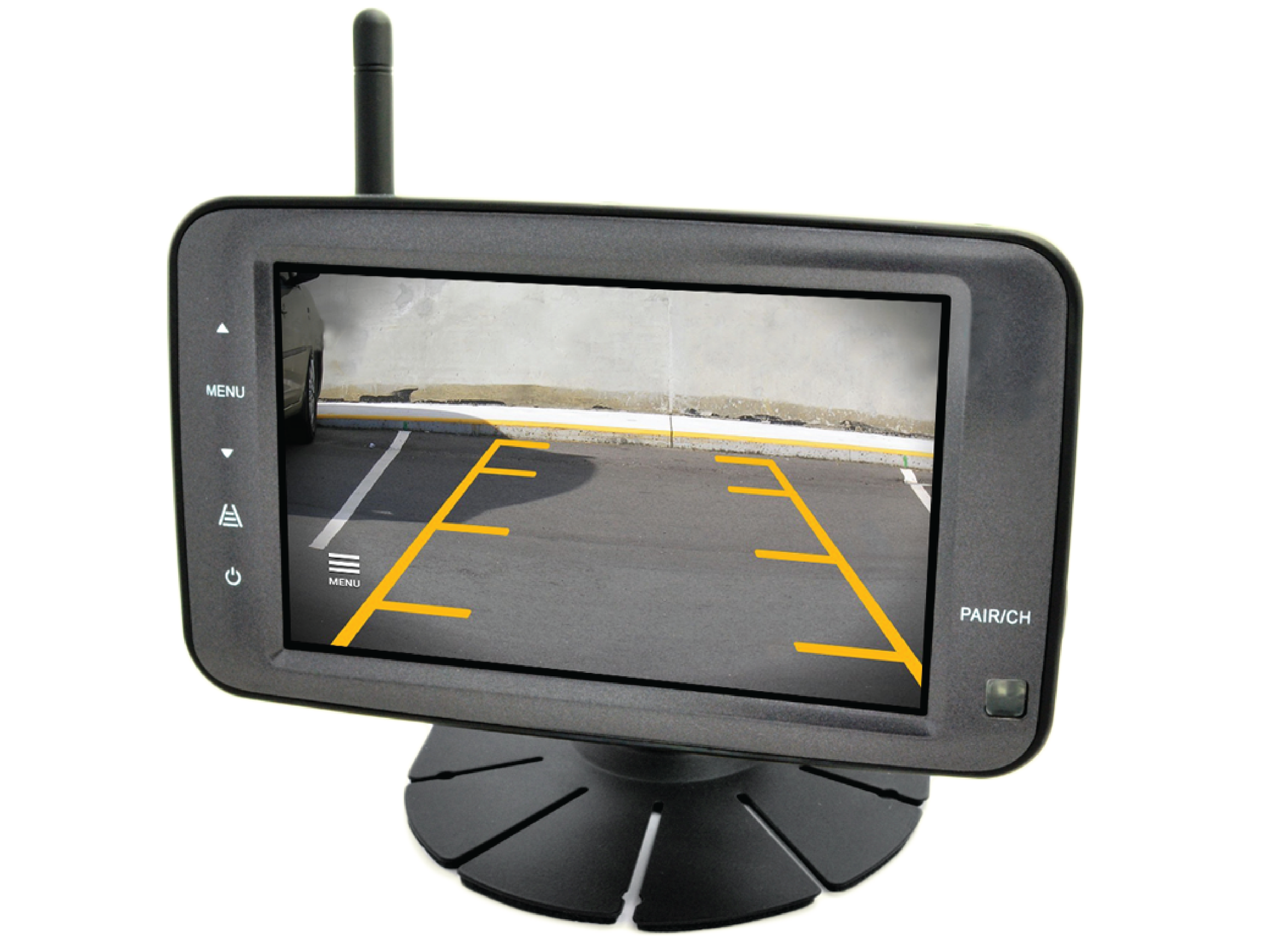

2.4GHz wireless 4.3” LCD monitor

1/3.7” CMOS Sensor – 420 TV Lines

120º Wide Angle View

Easy Setup, Plug and Record

Range up to 55ft

IP68 Rating Outdoor
No Costly Monthly Fees or Contracts
Our products can be implemented as a standalone system, or as add-on enhancements to existing GPS / Telematics solutions.
Applications & Industries

Logistics, Delivery and Commercial Fleets

Local Government and Municipal Services

Law Enforcement and First Responders

And More... Contact a Ventra Representative Today!
VLCD - WK4 Kit Includes
Technical Specifications
Documents & Software

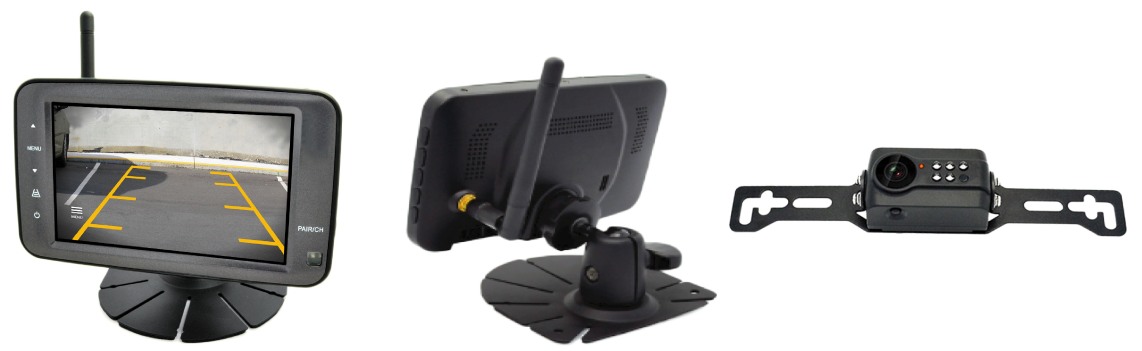

VLCD - WK4 Kit Includes

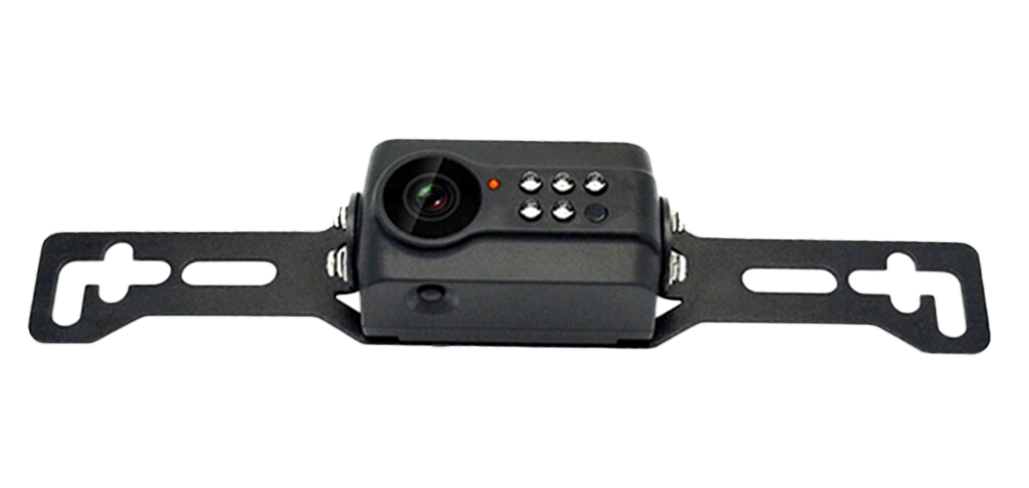

- Wireless Camera
- Vehicle Monitor
- Lighter Power Cable
- Instructional Manual
Technical Specifications
Frequency | 2.4GHz |
Latency | 120ms Max |
Camera Image Sensor | 1.37 CMOS Sensor |
Camera Lens | 2.5mm |
Viewing Angle | 120° angle |
Camera Housing | Metal |
Camera IP Rating | IP68 |
Camera Power | 10-32V DC 220mA (2 Wire) |
Monitor | 4.3” TFT LCD |
Video Resolution | 420 TVL |
Brightness / Contrast | 500cd/m2 / 500:1 |
Monitor Power | 5-32VDC 180mA (Cigarette Lighter Plug) |
OSD Control | Contrast, Sharpness, Brightness |
Viewing Mode | Normal, Mirror, Flip : Distance Guide Line |
Dimension | Monitor: 5.31 (W) x 3.15 (H) x 0.82 (D) – Without Mounting Bracket Camera 9.29 (W) x 1.27 (H) x 1.77 (D) – With Mounting Bracket |
Temperature | 14F ~ 150F (Operating) -22F ~ 165F (Storage) |
