VDR-220 Compact Two-Camera Fleet Video System
The VDR-220 is a compact, concealed vehicle video recorder with two rugged 720p weatherproof cameras for interior or exterior installation. The recorder mounts out of sight to help protect the system from tampering and theft.
View live or recorded video locally through the VentraConfig smartphone app, review footage using PC playback software, or add optional VentraCloud service for remote viewing, GPS tracking and event uploads.
SUITABLE fOR
Tractors
Trucking
Buses
Cars
Features & Benefits
720P HD Weather Resistant Camera x 2
Supports up to 128GB Max Storage
Password Encryption for Recordings
Continuous Normal + Event Recording
Optional Cloud Live View & Event Video Upload
Detect Overspeed and Impact Events
Assign Vehicle and Driver ID
Optional GPS for Speed and Route History
VEHICLES & EQUIPMENT
The compact VDR-220 can be installed across a wide range of commercial vehicles and equipment where flexible two-camera coverage is needed.
- Delivery Vans & Commercial Trucks
- Shuttles, Buses and Transits
- Work Vans & Service Vehicles
- Tractors, Trailers & Reefers
- Cement Mixers & Construction Vehicles
- Municipal & Utility Vehicles
- Forklifts & Specialized Equipment
- Tow trucks and Flatbed Vehicles
Multiple Viewing Options
The VDR-220 gives fleets three practical ways to access recorded video:
Local Smartphone Viewing
Connect directly to the VDR-220 through Wi-Fi within approximately 15 feet to view cameras, review recordings and download clips using the VentraConfig app.
PC Playback
Remove the SD card and review or export recorded video using the included PC playback software.
Optional Remote Access
Add VentraCloud service and an in-vehicle internet connection for remote live viewing, vehicle location, event uploads and fleet monitoring.
Smartphone app view
Use the VentraConfig app on a nearby smartphone to connect directly to the VDR-220 through the recorder’s local Wi-Fi network within approximately 15 feet. This is a short-range local connection, not remote internet or cloud access.
From the app, users can:
- View live camera video
- Review recordings stored on the SD card
- Download selected video clips and images
- Enable or disable audio recording
- Adjust supported recorder settings
To connect, open the smartphone’s Wi-Fi settings, select the VDR-220 WiFi SSID (VG8xxxxx), then return to the VentraConfig app.
iOS
Android
VENTRACLOUD REMOTE ACCESS
Add optional VentraCloud service and a compatible in-vehicle internet connection to access the VDR-220 remotely.
Benefits for fleet operators
- Respond faster to incidents with remote access to live and recorded video
- Reduce unnecessary vehicle checks by reviewing footage and vehicle location remotely
- Improve fleet visibility across selected vehicles from one online platform
- Support claims and investigations with video, GPS history and event records
- Focus attention on important events through automatic uploads and alerts
- Add connected features when needed without replacing the VDR-220 hardware
Service requirement:
VDR-220 requires compatible in-vehicle WiFi internet connection.
VENTRACLOUD CONNECTED FEATURES
Extend the VDR-220 with remote video access, vehicle location, event uploads, alerts and cloud-based fleet visibility.

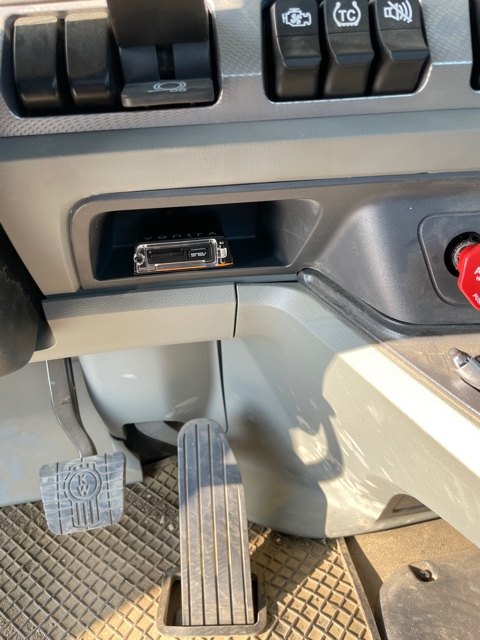

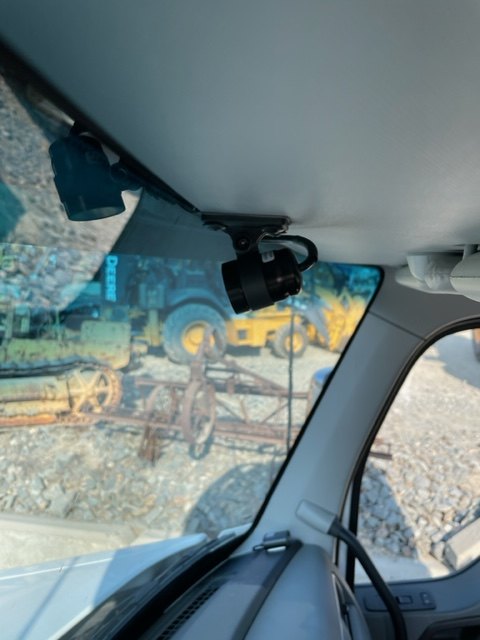

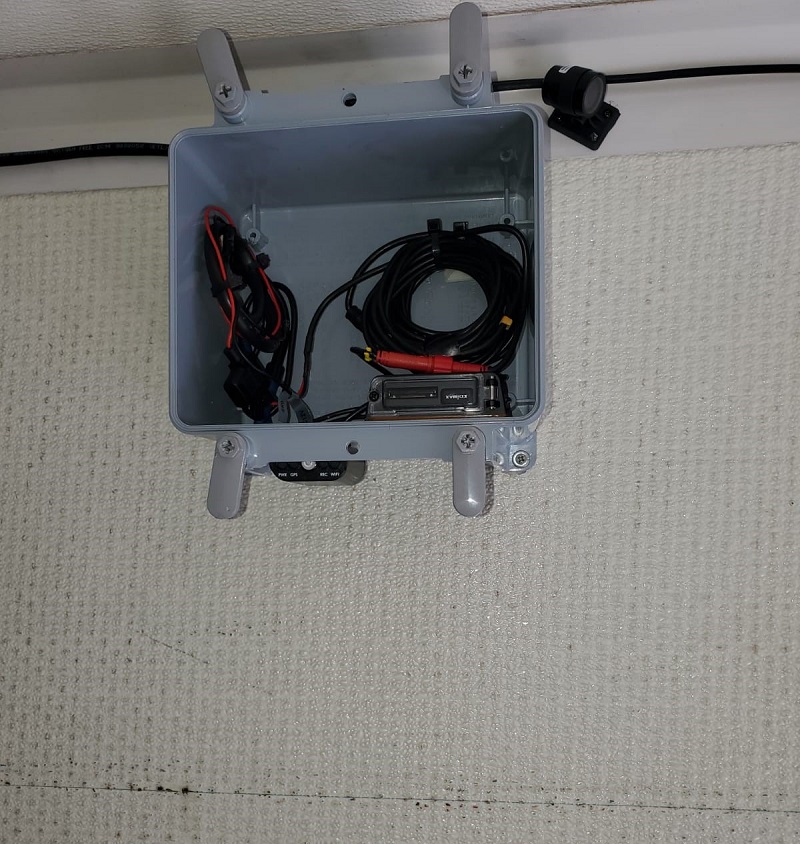

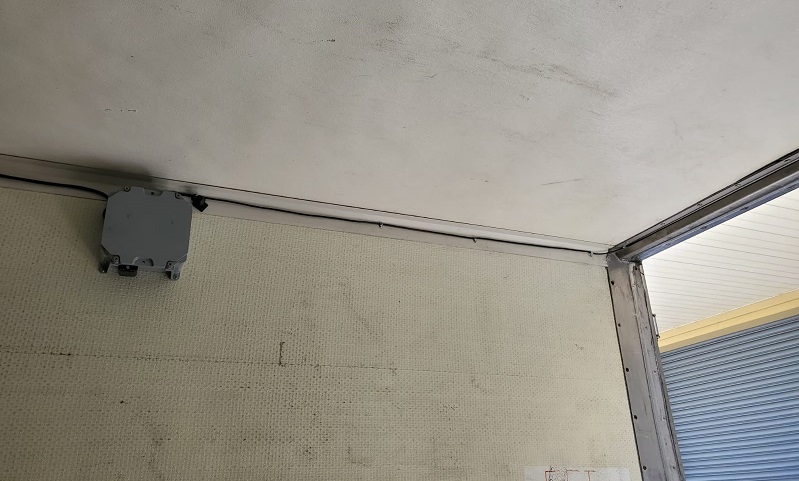

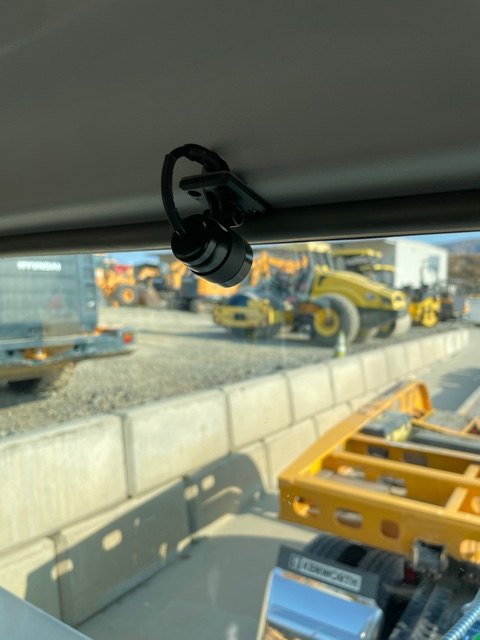

ACTUAL VDR-220 INSTALLATIONS
The VDR-220 uses two compact, weather-resistant cameras that can be installed inside or outside the vehicle. Its small recorder can be concealed to help protect the system from tampering and theft.
Flexible installation options support commercial trucks, trailers, construction vehicles, forklifts, motorcycles, golf carts and other specialized equipment.
Applications & Industries
Logistics, Delivery and Commercial Fleets
Local Government and Municipal Services
Law Enforcement and First Responders
And More... Contact a Ventra Representative Today!
- 1 VDR-220 Recorder
- 2 Cameras
- 32GB SD
- 2 x 15ft Camera Cable
- DVR Power Cable
- WiFi Adapter
- Mounting Bracket
- Software
- 1 VDR-220 Recorder
- 2 Cameras
- 64GB SD
- 2 x 15ft Camera Cable
- DVR Power Cable
- WiFi Adapter
- Mounting Bracket
- Software
- 1 VDR-220 Recorder
- 2 Cameras
- 128GB SD
- 2 x 15ft Camera Cable
- DVR Power Cable
- WiFi Adapter
- Mounting Bracket
- Software
VDR-220IR
- 1) VDR-220 Recorder
- 1) 720P IR Camera
- 1) 720 Standard Camera
- 1) 64GB SD Card
- 2) 15ft camera cable
VDR-220IR-ZT
- 1) VDR-220 Recorder
- 1) 720P IR Camera
- 1) 720 Standard Camera,
- 1) 128GB SD Card,
- 2) 15ft camera cable,
VDR-220IR2
- 1) VDR-220 Recorder
- 2) 720P IR Camera
- 1) 32GB SD Card
- 2) 15ft camera cable
VDR-220IR2-BT
- 1) VDR-220 Recorder
- 2) 720P IR Camera
- 1) 64GB SD Card
- 2) 15ft camera cable
VDR-220IR2-ZT
- 1) VDR-220 Recorder
- 2) 720P IR Camera
- 1) 128GB SD Card
- 2) 15ft camera cable
| Resolution | 2CH 720P @ 30FPS each |
| Housing | Metal |
| Mode | Record/Play |
| Resolution | Display: 1280×720 Record: 1280×720 |
| Storage | SD Card up to 128GB, U1 or faster |
| EX22-GPSMIC | 4 LED (WIFI, REC, GPS, Power) *Optional |
| Power Connection | 2 Wires (12V, Ground) |
| G-SENSOR | Built-in |
| WIFI | USB WIFI Adapter |
| System | Records when Engine is On |
| Built-In Super Capacitor | YES |
| Power Consumption | DC 12V |
| Temperature Tolerance | 0F ~ 131F ( -17° ~ 55° ) |
| IP Rating | IP66 |
| Power | DC5V~DC12V±10% input Power Consumption 500mA |
| Resolution | NTSC 1280 x 720 HD 30 FPS Per Camera |
| Image Sensor | 1/4” CMOS sensor |
| View Angle | H:110 ° / V: 55 ° / D: 130 ° |
| Lens | 2.0mm |
| Temperature | Operation:- 0F ~ 131F (-17°C ~ 55°C) Storage:- 4F ~ 140F (-20 °C~60 °C) |
| Connection | Mini DIN cable harness plug (included) |
| Camera Rating | IP67 |
| Dimension (L x W X H) | 1.18” x 1.69” x 1.96” inch ( 30 x 43 x 50 mm) |
| Status LED | 4 LED (WiFi, REC, GPS, Power) |
| GPS – Passive | YESYES |
| Status LED | YES |
| Microphone | Built-in Mic |
| IP Rating | IP66 |
| Cable Connection | Ventra Micro 4 pin DIN |
| Video System | NTSC |
| Sensor | 1/4″ CMOS Image Sensor |
| View Angle | H: 90° V:80° |
| Number Of Pixel | 1280 X 720 |
| Effective Pixels | 1.0 Mega Pixel |
| Resolution | 720P |
| Sync System | Internal |
| Scanning System | Progressive Scan |
| Sensitivity | 0.1 lux(4300mV/Lux-sec) |
| S/N Ratio | Max 37 dB |
| Auto Gain Control | Auto |
| White Balance | Auto |
| Electronic Shutter | NTSC: Auto: 1/60s to 1/100,000s |
| Output | 1 VP-P Composite Video Output, 75 Ohms |
| Power Supply | DC 12 ± 1V |
| Power Consumption | 80 mA (IR OFF) / 150mA (IR ON) |
| Lens | 2.6mm |
| Operating Temperature | 14F ~ 140F ( – 10° C ~ + 60°C ) |
| Dimensions (H-W-D) | 2.27″ x 2.06″ x 2.18″ ( 57.6-52.4.-55.5 mm ) |
| LEDs | 6PCS |
| IR Range | 15ft ( 3M ) |
| IR Wavelength | 850 nm |
| Waterproof | IP68 |
VDR-220 Expansion Products
The VDR-220 has several expansion products to fit your every need. Whether you want to expand your equipment capability or just need to replace a bracket, we can help.
GPS RECEIVER, MICROPHONE AND STATUS LED MODULE
EX22-GPSMIC
GPS passive receiver records speed and route history. Microphone and status indicator
EXPANSION CAMERA
EX22-CAMIR
720P HD Rugged Indoor / Outdoor Metal housing camera with 6 IR LED for night vision for VDR-220 series. Ideal for recording driver or interior
EXPANSION CAMERA
EX22-OMIR
720P HD Indoor / Outdoor HD mini camera for VDR-220 system. Encased in rugged metal housing for all weather protection
9FT EXTENSION CAMERA CABLE
EX22-CBL9
9ft extension cable mini 4 pin DIN for EX22-OMIR camera.
15FT EXTENSION CAMERA CABLE
EX22-CBL15
15ft extension cable mini 4 pin DIN for EX22-OMIR camera
REPLACEMENT POWER CABLE
EX22-PWR
Replacement 12VDC hardwired power cable for VDR-220 system
Multi Viewing Options – Fleet Management Solution
Ventra systems can be utilized as standalone vehicle recorder, or subscribe to the optional cloud service for live viewing, event video upload and Telematics Solution.
